Double-Sided Mirror Glass Hanging System (Complete, Mirror & Fittings)

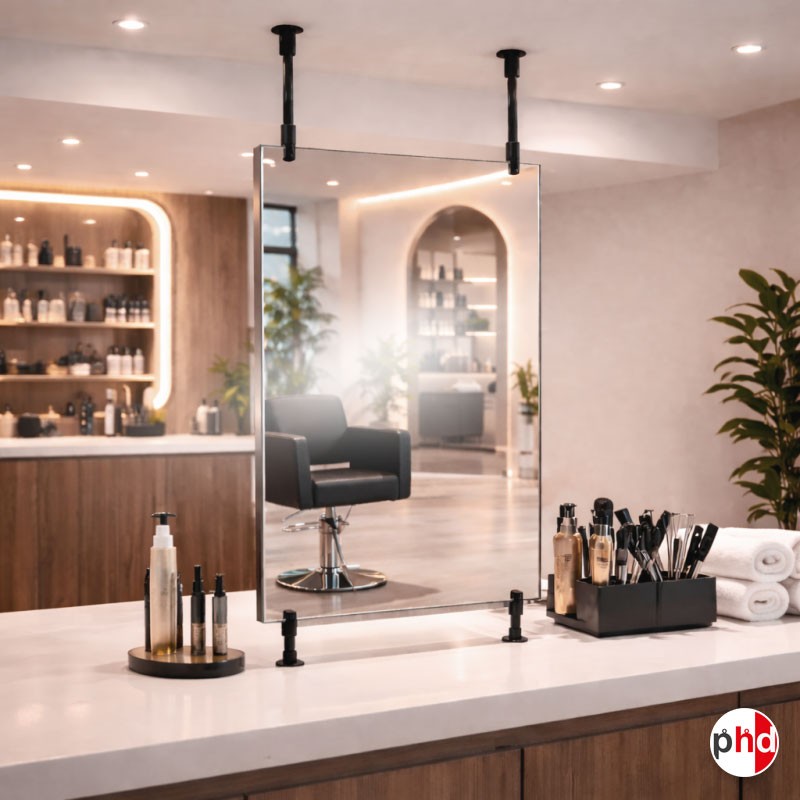

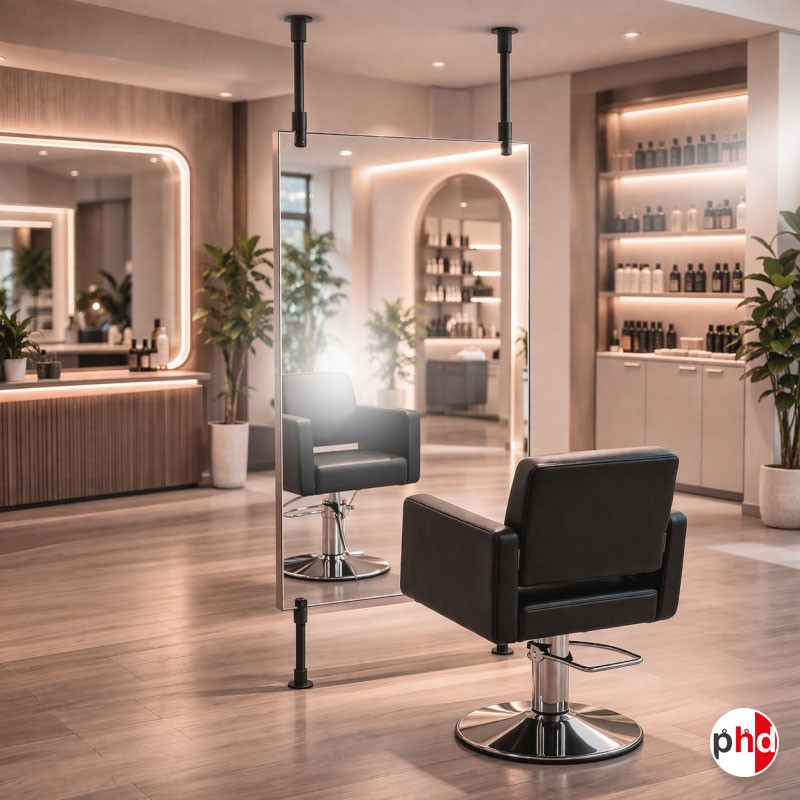

• Double-Sided Mirror Glass Hanging System creates modern, sleek workstations for professional salon countertops or shop floors!
• Ideal for the modern interiors of upscale salons and spas, each system features high-quality mirror-mounting fittings & double-sided frameless mirror panel.
• The installation securely suspends the frameless mirror glass, with both stability and a clean, minimalist look & feel.

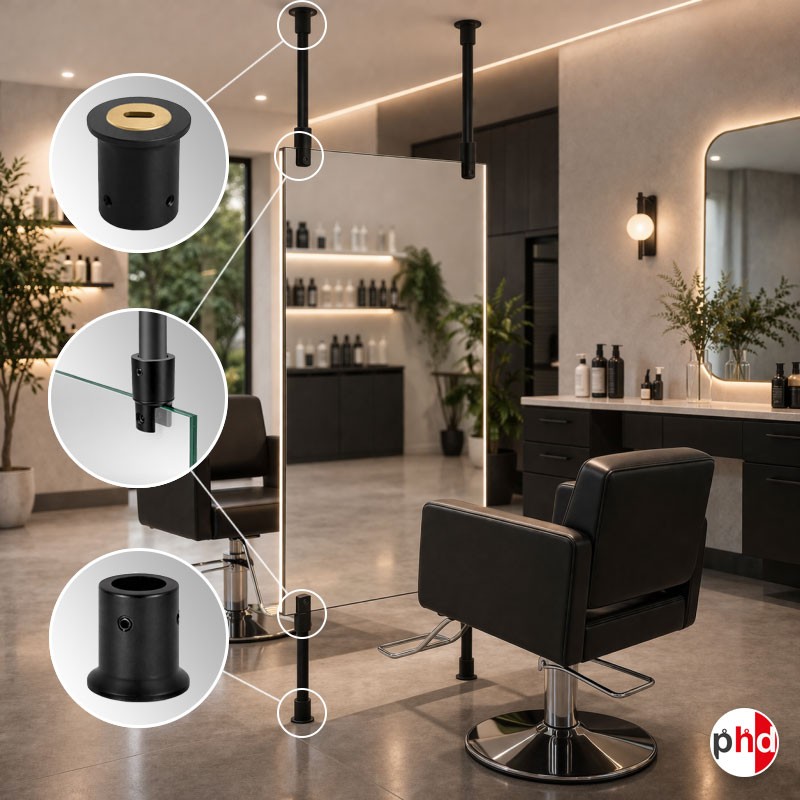

• Perfect for salons, barbershops, beauty studios, and retail environments that require a robust & stylish workspace.
• This mirror hanging solution enhances your workspace while maximising visibility and style.
• Fittings suitable for 8mm mirror glass & panels.
• Mirror glass included - Custom sizes are available on request.

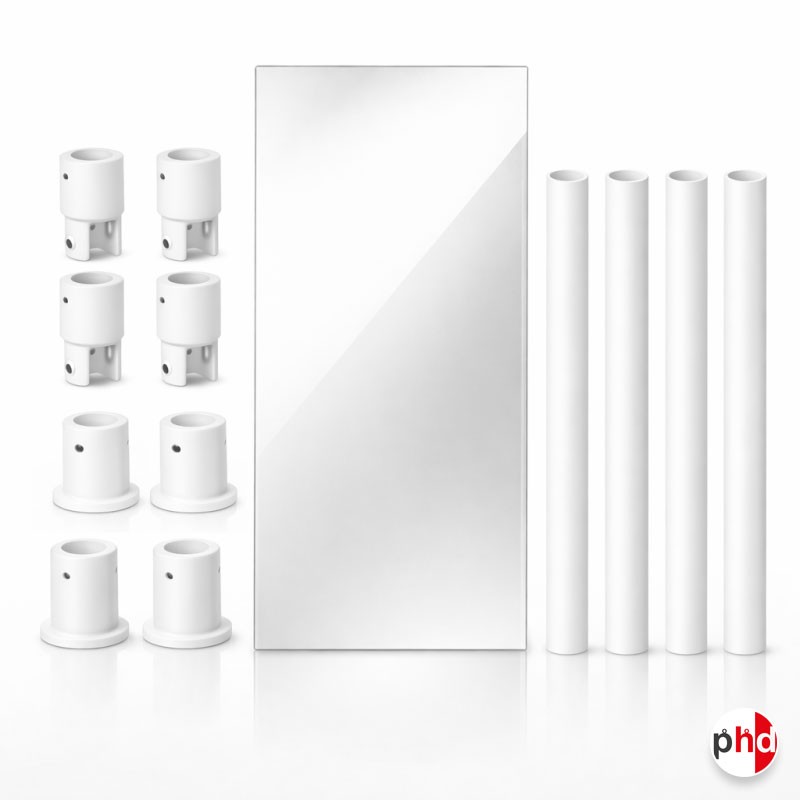

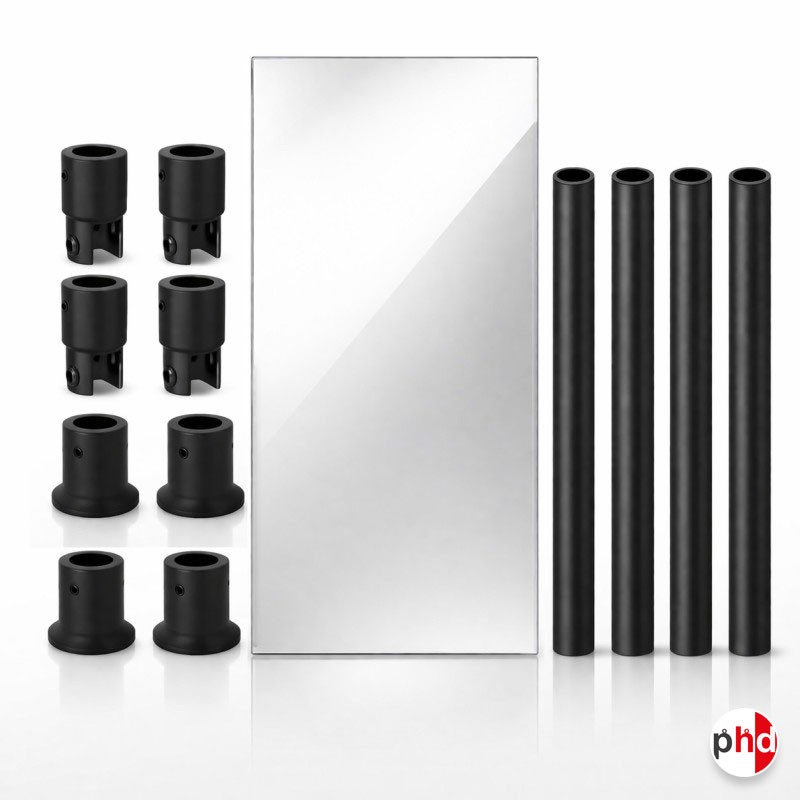

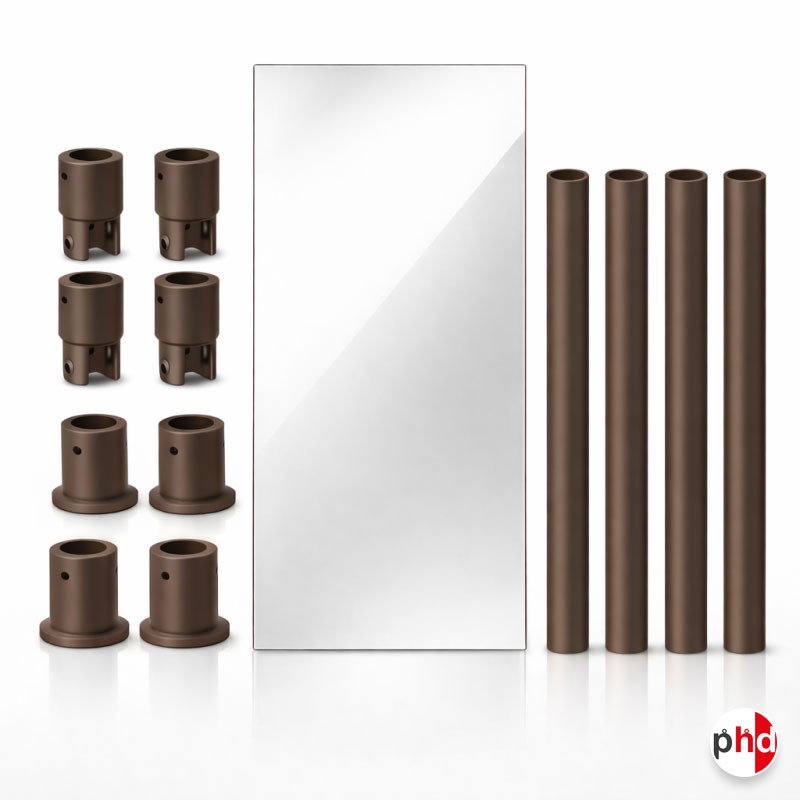

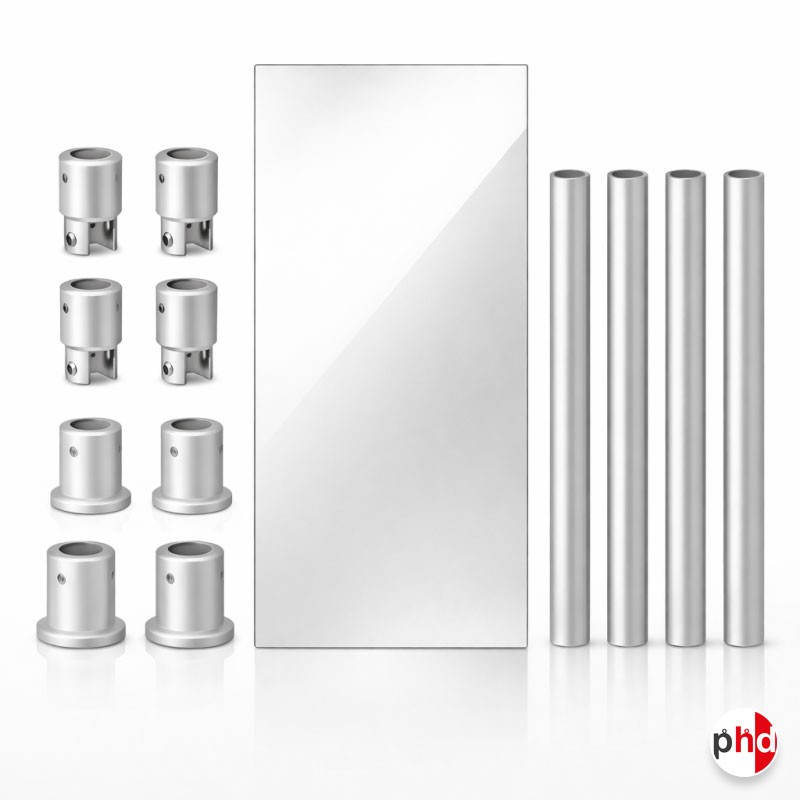

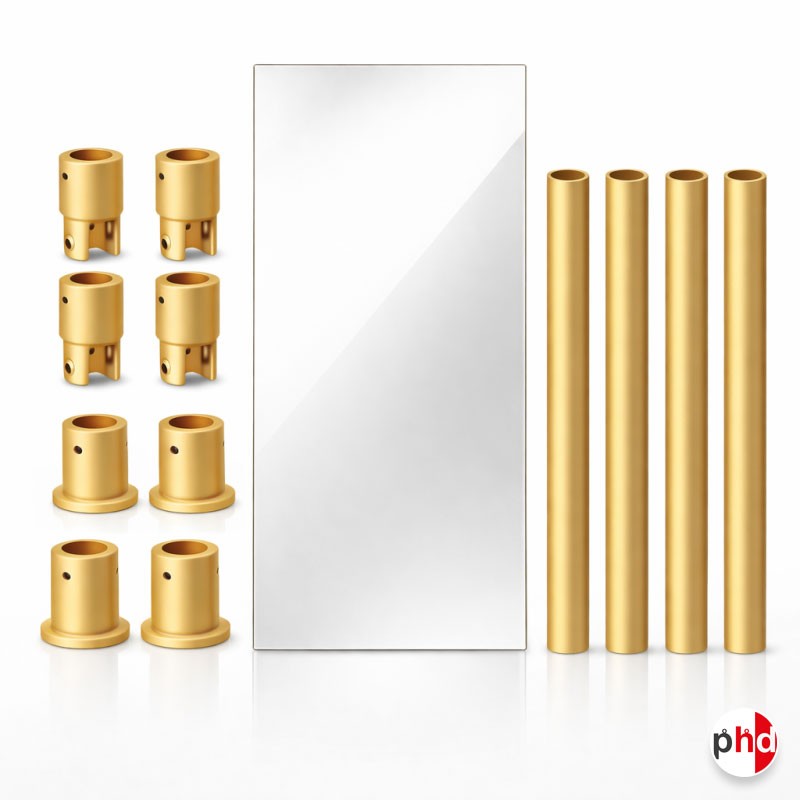

Complete system includes:

• (1) Double-sided mirror panel (90 x 60cm)
• (4) 1.2m round rods
• (2) Ceiling rod mounts
• (2) Floor/countertop rod mounts
• (4) Mirror clamps, 8mm

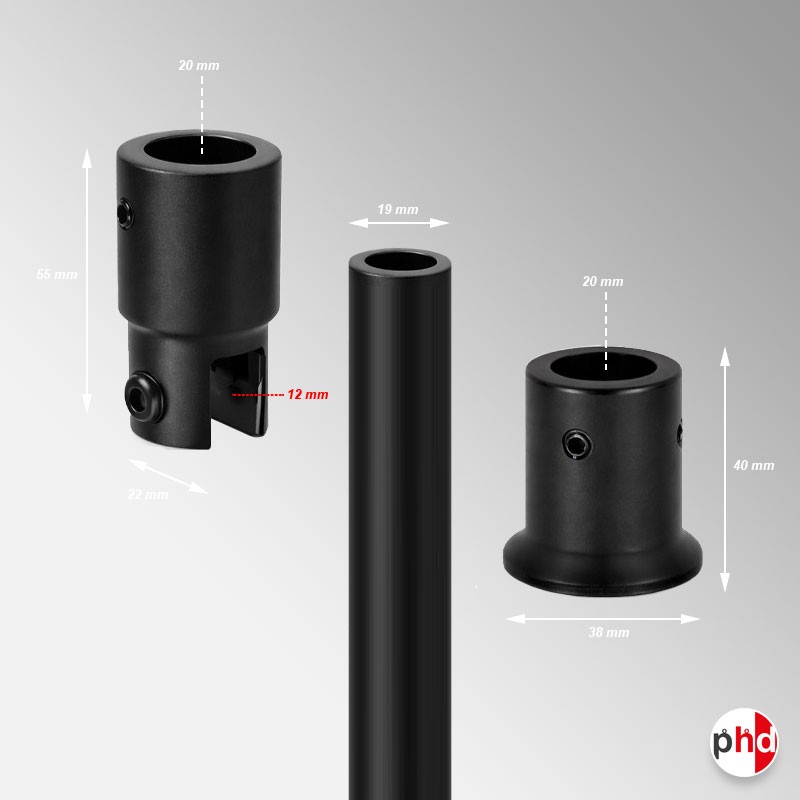

Fittings dimensions:

• Rod mount: 38mm x 40mm (hole for rod: 20mm)
• Mirror clamp: 22mm x 55mm (slot size: 12mm)
• Rod: 1200mm (1.2m) (diameter: 19mm)

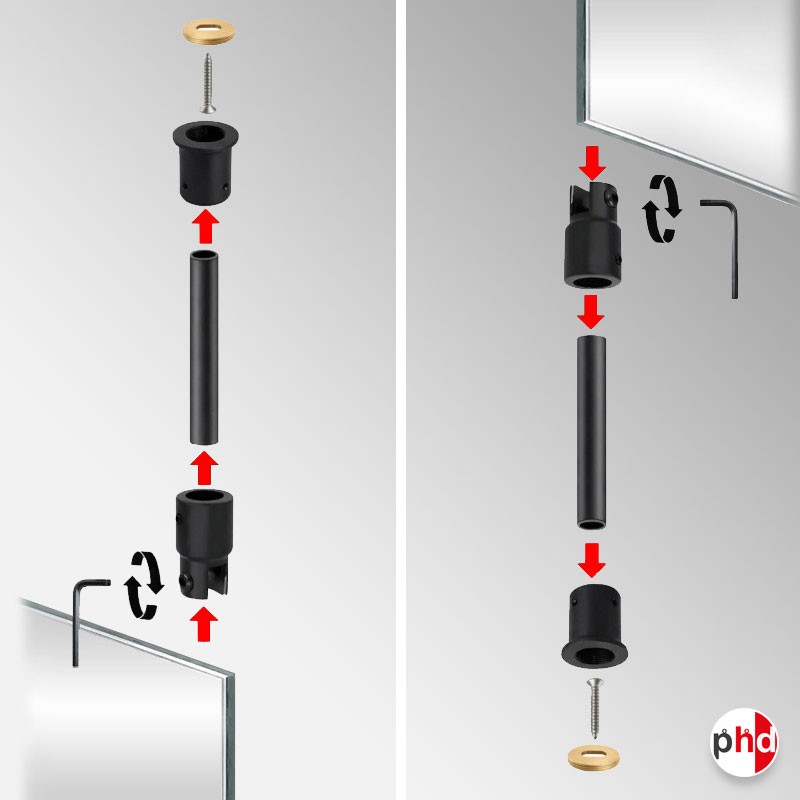

Installation guide:

1. Mark & Prepare Ceiling Rod Mounts:

• Mark the fixing point on the ceiling for the first rod.
• Drill a hole suitable for the kit screw provided (insert wall plugs if needed for plaster or brick ceilings).

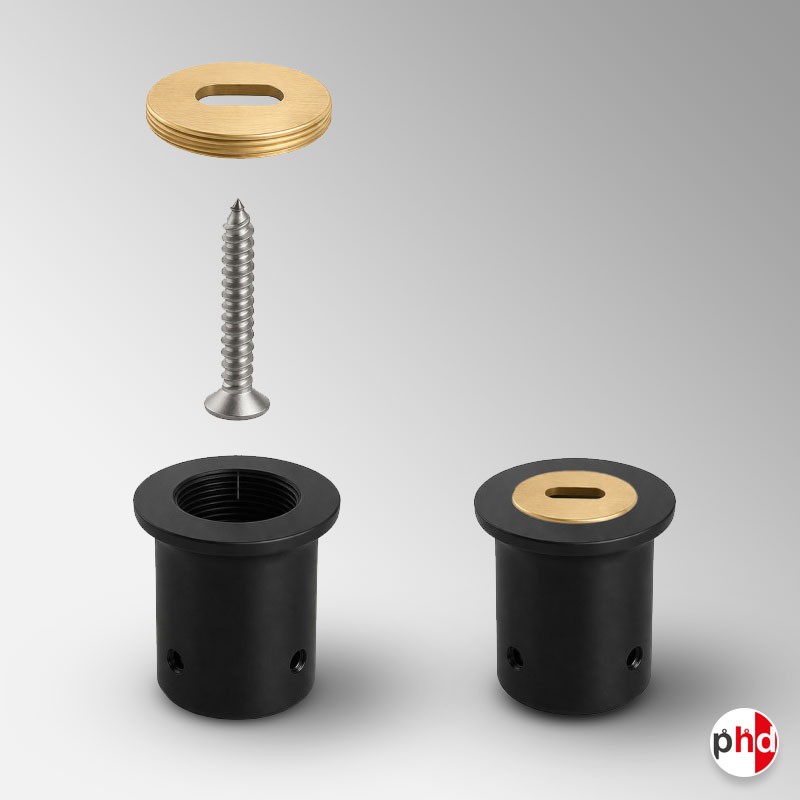

2. Fix the Ceiling Rod Mount:

• Insert the screw through the gold cover cap.
• Tighten it into the ceiling securely.
• Once fixed, slide or place the ceiling holder over it for a clean finish.



3. Insert the Rod:

• Take the metal tube/rod and insert it into the top ceiling holder.
• Ensure it sits properly and straight.
• Tighten the small side grub screws (if present) to lock the rod in place.



4. Attach the Mirror Clamp:

• Slide a Mirror clamp onto the lower end of the rod.
• Do not fully tighten yet - leave it slightly loose for adjustment.



5. Position Mirror Glass Panel:

• Place the top edge of the glass panel into the clamp.
• Adjust the glass panel until it's aligned correctly.



6. Secure the Mirror Glass Panel:

• Use the Allen key (included) to tighten the clamp screws.
• Make sure the clamp grips the glass firmly.



7. Final Adjustment:

• Check alignment (vertical straightness).
• Adjust rotation if needed (as shown by the rotation icon).
