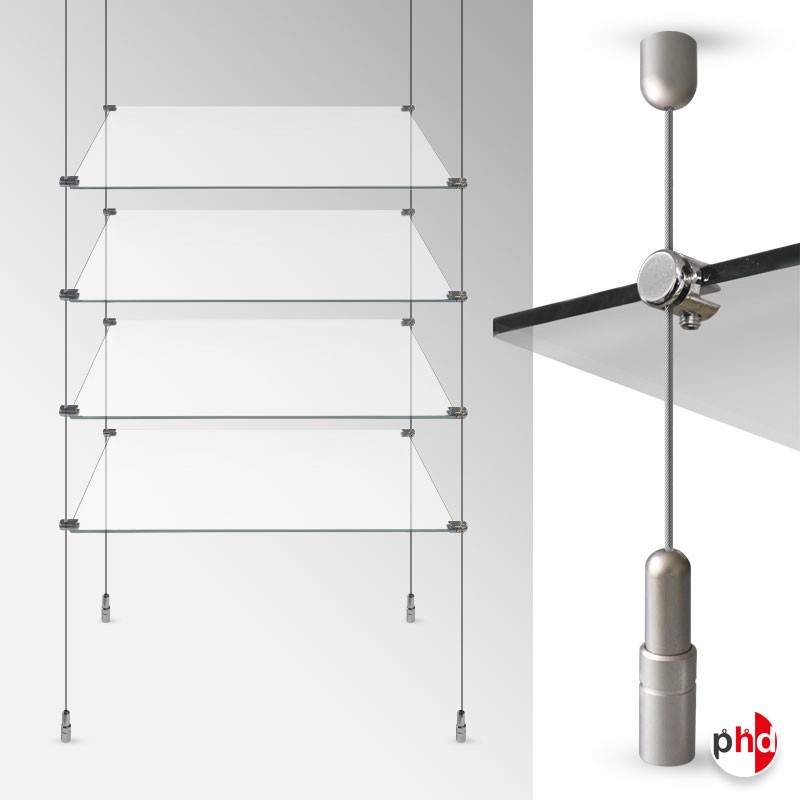

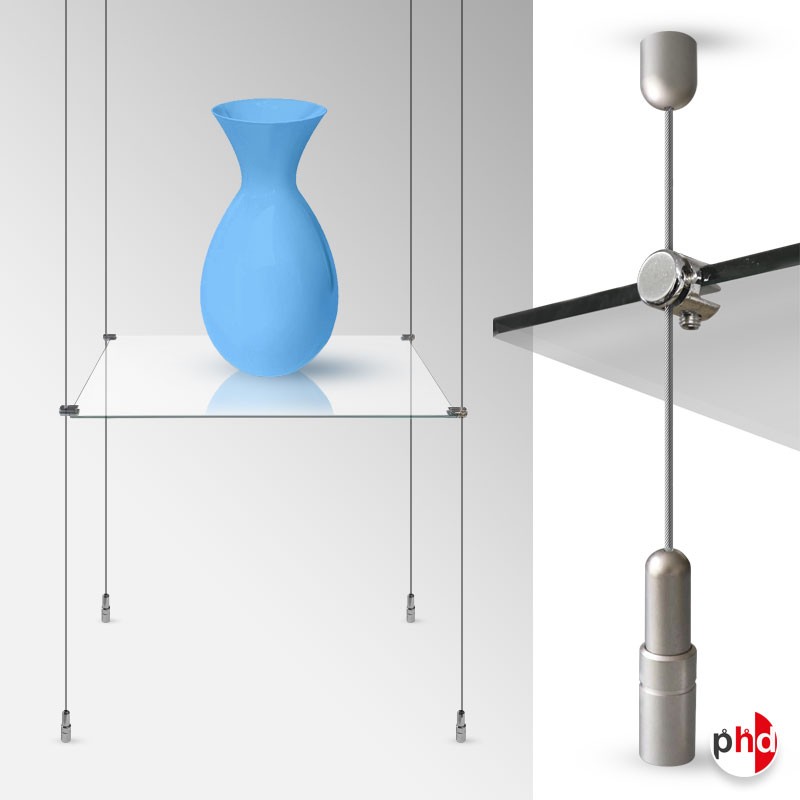

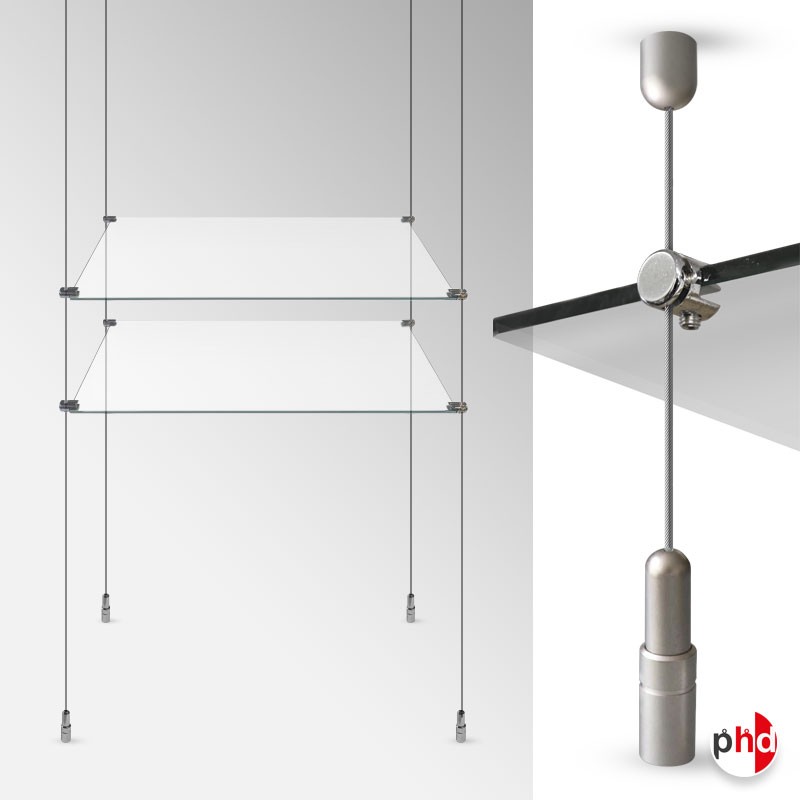

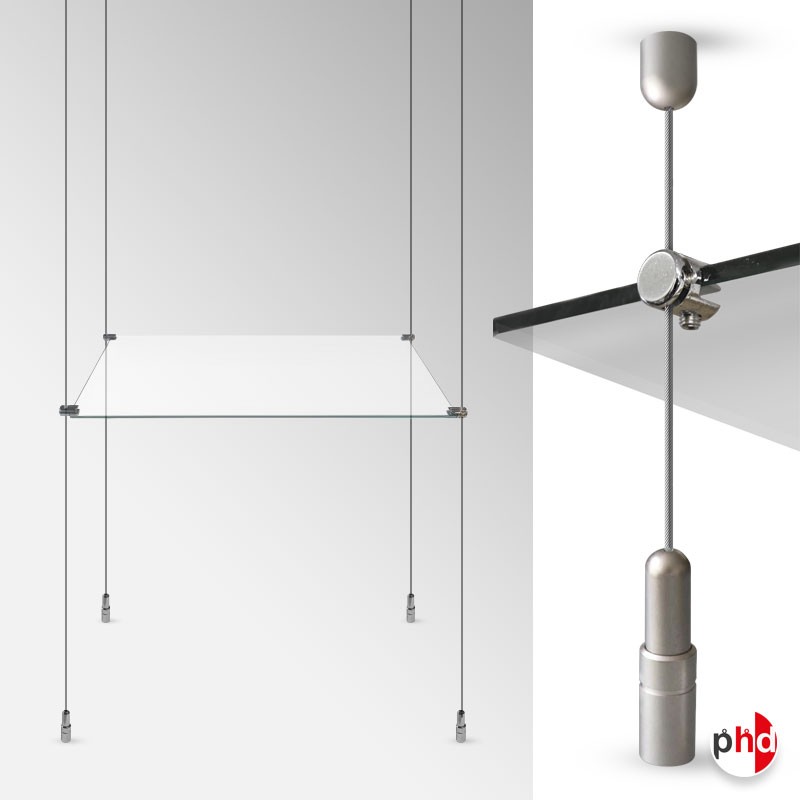

Cable Display Glass Shelf (Ceiling-to-Floor Suspended Wires & Glass Shelving, Complete)

• Ready-to-use cable display shelf system - complete kit featuring glass shelving boards and all suspension wires & fittings to install between the ceiling & floor!
• A complete suspended glass shelving unit uses (4) cable wires with ceiling-to-floor fixings, and (4) shelf supports per shelf.
• No more holes in the glass - with modern shelf supports, you can add & remove any shelf board from the cables at any time!
• This clever shelf support can add shelving boards without removing or disturbing the other shelves already fitted, above and below!
• Our glass shelf boards are all toughened safety glass and available in various sizes. Custom sizes are available on request!
• All standard glass shelving is available in a clear or frosted finish. Custom colours are available on request!

Complete cable display shelf kit - Up to 1m length:

• 1 shelf = (1) glass shelf board, (4) ceiling-to-floor fittings with 4m cable, (4) shelf supports
• 2 shelves = (2) glass shelf board, (4) ceiling-to-floor fittings with 4m cable, (8) shelf supports
• 3 shelves = (3) glass shelf board, (4) ceiling-to-floor fittings with 4m cable, (12) shelf supports
• 4 shelves = (4) glass shelf board, (4) ceiling-to-floor fittings with 4m cable, (16) shelf supports
• All cables can be cut shorter to the required length during installation.

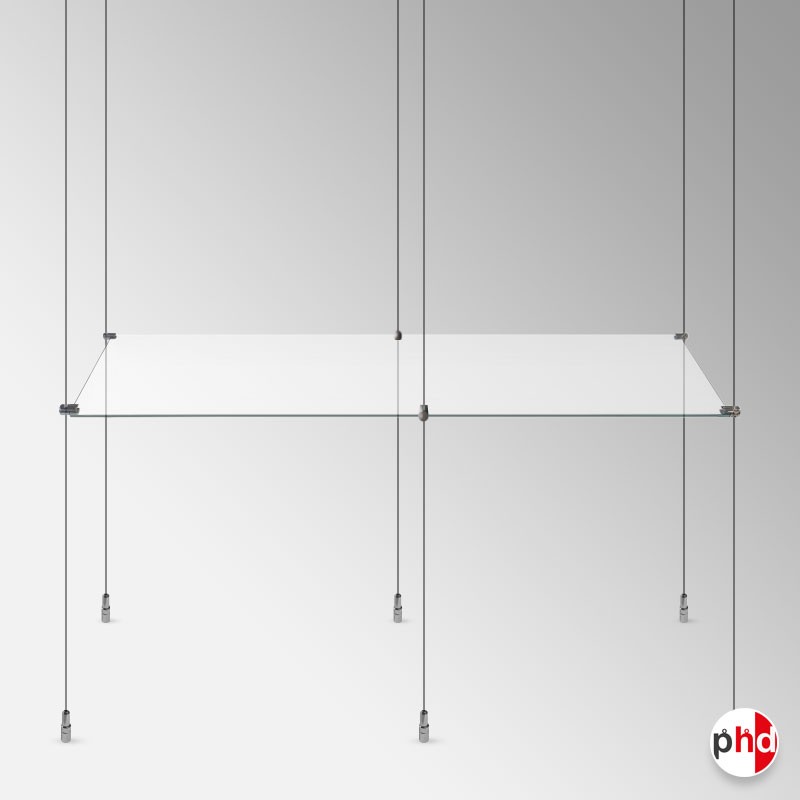

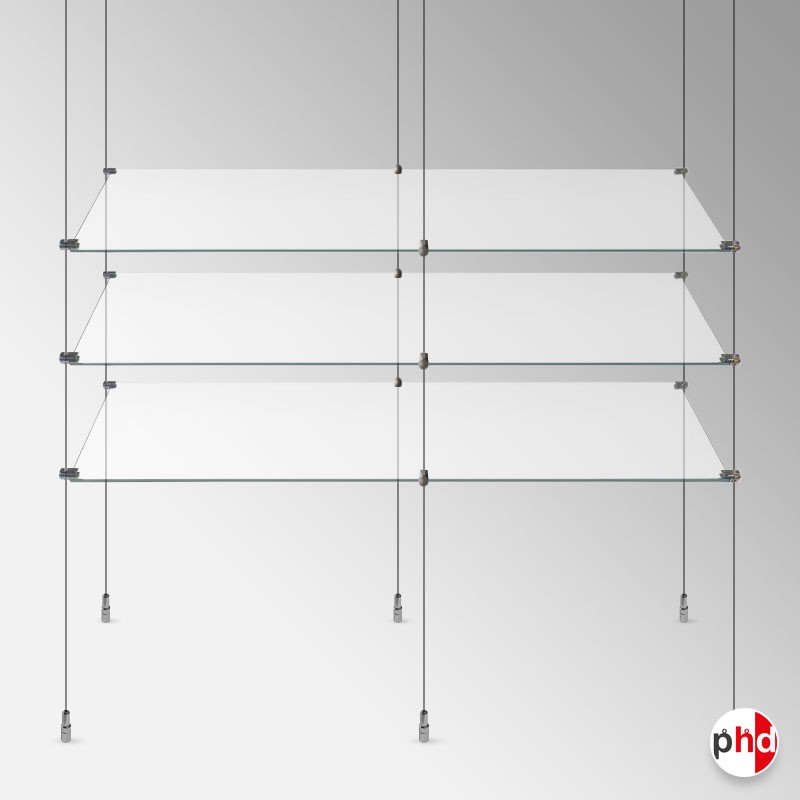

Complete cable display shelf kit - 1.5m & 2m length:

• 1 shelf = (1) glass shelf board, (6) ceiling-to-floor fittings with 4m cable, (6) shelf supports
• 2 shelves = (2) glass shelf board, (6) ceiling-to-floor fittings with 4m cable, (12) shelf supports
• 3 shelves = (3) glass shelf board, (6) ceiling-to-floor fittings with 4m cable, (18) shelf supports
• 4 shelves = (4) glass shelf board, (6) ceiling-to-floor fittings with 4m cable, (24) shelf supports
• All cables can be cut shorter to the required length during installation.

How to install:

• The ceiling & floor fixings unscrew into two pieces.
• First, screw the brass part of the ceiling fixture into the ceiling, then reattach its chrome cap. The brass part should be hidden under the chrome cap if done correctly.
• Suspend the cable from the ceiling part by passing it through the small hole in the floor fixing and through the spring underneath.
• Cut the cable to the desired length and attach the cable-stopper cylinder to the end of the cable by tightening the small screws on the cylinder.
• Screw the bottom part of the floor fixing into the floor, and then securely attach the top part to it. The spring inside the floor fitting will provide tension to the cable, keeping it straight and tight.
• Install four cables from the ceiling to the floor to create a column, by attaching four panel supports per shelf board, two on the left cable and two on the right cable.
• You can easily add as many shelves as you like at any time, using additional shelf supports!
