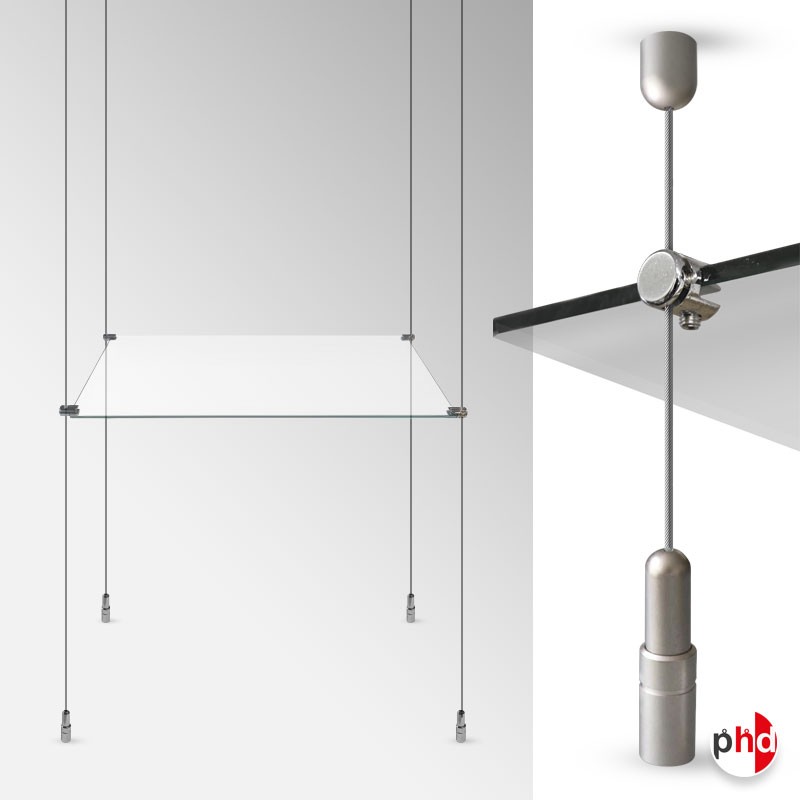

Cable Display Glass Shelf Kit (Ceiling-to-Floor Wires & Fittings Only, No Glass)

• Ready-to-use cable display glass shelf kit - all suspension wires & fittings needed to install cables between the ceiling & floor!
• A complete suspended glass shelving kit uses (4) cable wires with ceiling-to-floor fixings, and (4) shelf supports per shelf.
• No more holes in the glass - with modern shelf supports, you can add & remove any shelf board from the cables at any time!
• This clever shelf support can add shelving boards without removing or disturbing the other shelves already fitted, above and below!
• Supports can suspend shelf boards: 6mm, 8mm, & 10mm in thickness.
• Our cable systems are for toughened safety glass only. Glass shelf boards are available on request!
• No glass is included in this kit!

Ready-to-use cable display glass shelf kit (all screws included!):

• 1 shelf kit = (4) ceiling-to-floor fittings with 4m cable, (4) shelf supports
• 2 shelves kit = (4) ceiling-to-floor fittings with 4m cable, (8) shelf supports
• 3 shelves kit = (4) ceiling-to-floor fittings with 4m cable, (12) shelf supports
• 4 shelves kit = (4) ceiling-to-floor fittings with 4m cable, (16) shelf supports
• All cables can be cut shorter to the required length during installation.

How to install:

• The ceiling & floor fixings unscrew into two pieces.
• First, screw the brass part of the ceiling fixture into the ceiling, then reattach its chrome cap. The brass part should be hidden under the chrome cap if done correctly.
• Suspend the cable from the ceiling part by passing it through the small hole in the floor fixing and through the spring underneath.
• Cut the cable to the desired length and attach the cable-stopper cylinder to the end of the cable by tightening the small screws on the cylinder.
• Screw the bottom part of the floor fixing into the floor, and then securely attach the top part to it. The spring inside the floor fitting will provide tension to the cable, keeping it straight and tight.
• Install four cables from the ceiling to the floor to create a column, by attaching four panel supports per shelf board, two on the left cable and two on the right cable.
• You can easily add as many shelves as you like at any time, using additional shelf supports!
